30204-A - FAG BEARING

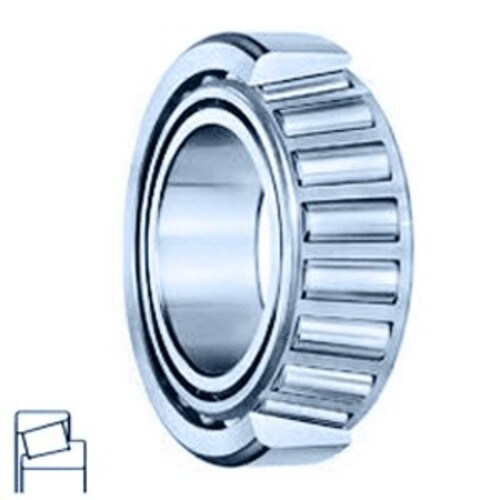

- 30204-A Tapered Roller Bearings
- Bore / Inner Diameter Inch:0.787
- Bore / Inner Diameter MM:20
- Outside Diameter Inch:1.85
- Outside Diameter MM:47
- Width Inch:0.6
- Width MM:15.25
- Series:
- Replacing:30204A, 30204A.F22, 30204A.J42A
SPECIFICATIONS
| Bore / Inner Diameter Inch | 0.787 |
|---|---|
| Bore / Inner Diameter MM | 20 |
| Outside Diameter Inch | 1.85 |
| Outside Diameter MM | 47 |
| Width Inch | 0.6 |
| Width MM | 15.25 |
| Max Speed RPM | 16800 |
| Reference Speed RPM | 10200 |
| Minimum Temperature C | -30 |
| Maximum Temperature C | 120 |
| Dynamic Load Capacity N | 27000 |
| Dynamic Load Capacity N Radial | 27000 |
| Static Load Capacity N | 27000 |
| Static Load Capacity N Radial | 27000 |
| Replacing | 30204A, 30204A.F22, 30204A.J42A |
