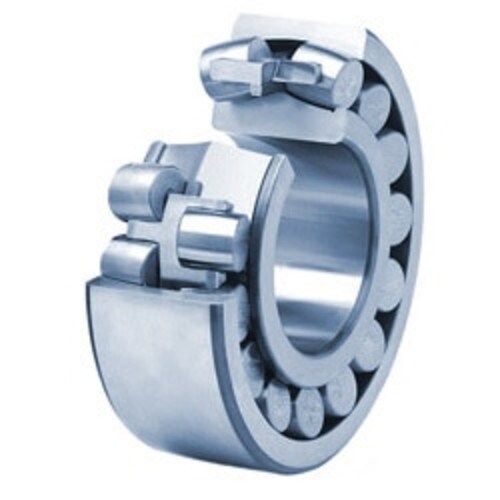

22228 CC/C3W33 - SKF
- Bore / Inner Diameter Inch: 5.512
- Bore / Inner Diameter MM: 140
- Outside Diameter Inch: 9.843
- Outside Diameter MM: 250
- Width Inch: 2.677
- Width MM: 68
- Seal Type: Open
SPECIFICATIONS
| Bore / Inner Diameter Inch | 5.512 |
|---|---|
| Bore / Inner Diameter MM | 140 |
| Outside Diameter Inch | 9.843 |
| Outside Diameter MM | 250 |
| Width Inch | 2.677 |
| Width MM | 68 |
| Seal Type | Open |
| Number of Rows of Rollers | Double Row |
| Bearing Locking Style | Shaft Mount |
| Rolling Element | Spherical Roller Bearing |
| Cage Material | Steel |
| Bore Profile | Straight |
| Relubricatable | Yes |
| Withdrawal Nut | Not Applicable |
| Withdrawal Sleeve | Not Applicable |
| Internal Fit / Preload | C3 |
