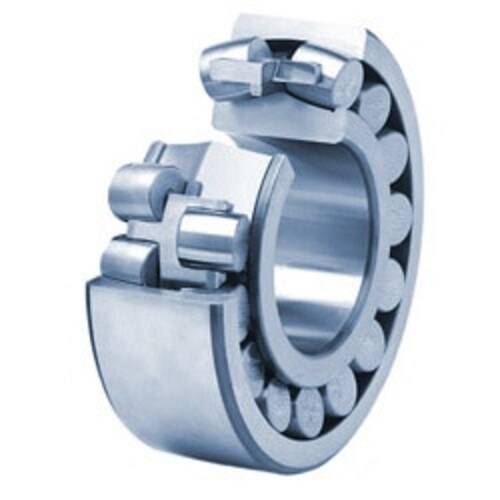

22210 E/C3 - SKF
- Bore / Inner Diameter Inch: 1.969
- Bore / Inner Diameter MM: 50
- Outside Diameter Inch: 3.543
- Outside Diameter MM: 90
- Width Inch: 0.906
- Width MM: 23
- Seal Type: Open
SPECIFICATIONS
Bore / Inner Diameter Inch | 1.969 |
---|---|
Bore / Inner Diameter MM | 50 |
Outside Diameter Inch | 3.543 |
Outside Diameter MM | 90 |
Width Inch | 0.906 |
Width MM | 23 |
Seal Type | Open |
Number of Rows of Rollers | Double Row |
Bearing Locking Style | Shaft Mount |
Rolling Element | Spherical Roller Bearing |
Cage Material | Steel |
Bore Profile | Straight |
Relubricatable | Yes |
Withdrawal Nut | Not Applicable |
Withdrawal Sleeve | Not Applicable |
Internal Fit / Preload | C3 |
