22207 E/C2 - SKF

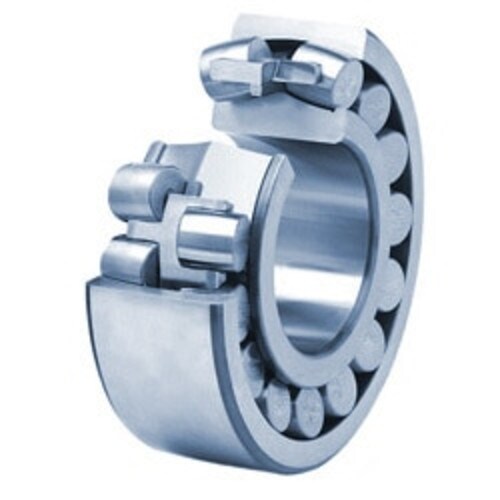

Support heavy radial and axial loads with this robust 22207 E/C2 ball bearing by SKF. The spherical roller construction features twin raceways, permitting misalignment and reducing friction. Lubrication in the inner and outer rings facilitates movement in all planes while permitting heat dissipation. The machined steel cage offers endurance for heavy-duty applications and extreme environments, operating at temperatures of up to 390 degrees Fahrenheit, which extends its range. The radial internal clearance is less than standard, reducing the movement and stress on the shaft.
This tough, spherical ball bearing provides a dynamic load capacity of 6,500 newtons and a static load capacity of 5,000 newtons at up to 12,000 rotations per minute. A straight bore type facilitates installation and removal, and the open steel cage style allows for the addition or removal of balls as needed. The C2 internal clearance rating ensures a stable position for extended time periods.
SPECIFICATIONS
Bore / Inner Diameter Inch | 1.378 |
---|---|
Bore / Inner Diameter MM | 35 |
Outside Diameter Inch | 2.835 |
Outside Diameter MM | 72 |
Width Inch | 0.906 |
Width MM | 23 |
Seal Type | Open |
Number of Rows of Rollers | Double Row |
Bearing Locking Style | Shaft Mount |
Rolling Element | Spherical Roller Bearing |
Cage Material | Steel |
Bore Profile | Straight |
Relubricatable | Yes |
Withdrawal Nut | Not Applicable |
Withdrawal Sleeve | Not Applicable |
Internal Fit / Preload | C2 |
