1680-2 - TIMKEN

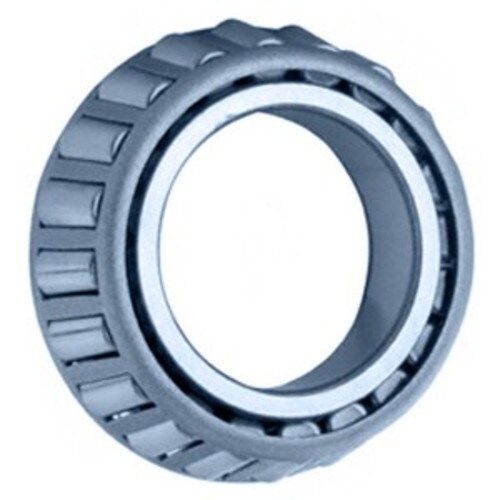

- 1680-2 - TIMKEN Tapered Roller Bearing Cones
- The most basic and most widely used type of tapered roller bearing, TIMKEN TS bearings consist of two main separable parts: the cone or inner ring and the cup or outer ring. The components are typically mounted in opposing pairs on a shaft.
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1 5/16 |
|---|---|
| Bore / Inner Diameter MM | 33.338 |
| Cone Width Inch | 0.8125 |
| Cone Width MM | 20.638 |
| Model Number | 1680 |
| Series | Single Cone Imperial Single Cone Imperial |
| In Or Metric | Imperial |
| Dynamic Load Capacity N | 52500 |
| Dynamic Load Capacity lbf | 11800 |
| Static Load Capacity N | 57900 |
| Static Load Capacity lbf | 13000 |
| Rating | Class 2 |
| Inner Ring Width Inch | 0.812 |
| Inner Ring Width MM | 20.6 |
| Weight (lbs) | .41 |
