15245-2 - TIMKEN

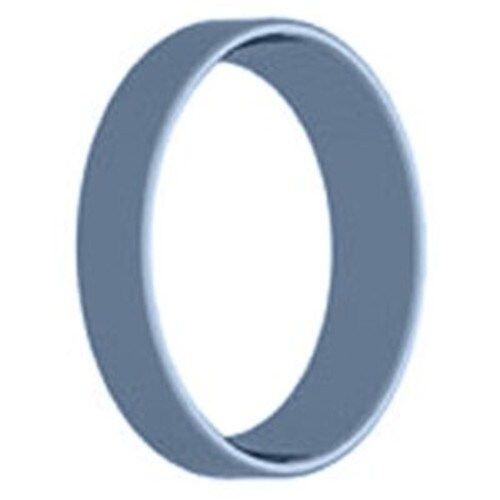

- 15245-2 - TIMKEN Tapered Roller Bearing Cups
- The most basic and most widely used type of tapered roller bearing, TIMKEN TS bearings consist of two main separable parts: the cone or inner ring and the cup or outer ring. The components are typically mounted in opposing pairs on a shaft.
SPECIFICATIONS
| Cup Width Inch | 0.5625 |
|---|---|
| Cup Width MM | 14.288 |
| Outside Diameter Inch | 2.4409 |
| Outside Diameter MM | 61.999 |
| In Or Metric | Imperial |
| Model Number | 15245 |
| Series | 1500015000 Single Cups Imperial |
| Rating | Standard |
| Weight (lbs) | 0.225 |
