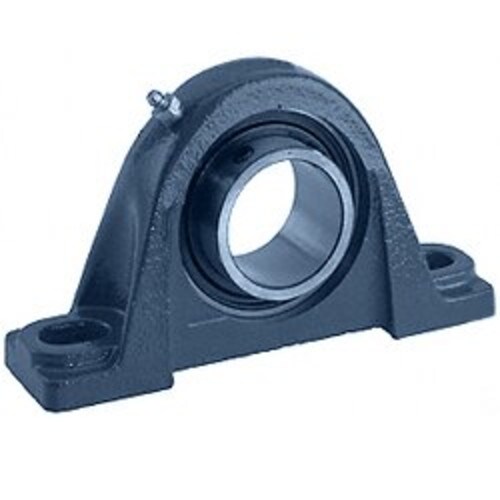

126811 P2B-SCM-108 - DODGE
- Bore / Inner Diameter Inch: 1.5
- Bore / Inner Diameter MM: 38.1
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 5.9
- Bolt Center to Center MM: 150
- Max Nom Bolt Ctr to Ctr Inch: 6.375
- Max Nom Bolt Ctr to Ctr MM: 161.925
- Bearing Locking Style: Set Screw
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.5 |
|---|---|
| Bore / Inner Diameter MM | 38.1 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 5.9 |
| Bolt Center to Center MM | 150 |
| Max Nom Bolt Ctr to Ctr Inch | 6.375 |
| Max Nom Bolt Ctr to Ctr MM | 161.925 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Min Nom Bolt Ctr to Ctr Inch | 5.5 |
| Min Nom Bolt Ctr to Ctr MM | 139.7 |
| Base to Center Height Inch | 2.125 |
| Base to Center Height MM | 53.98 |
