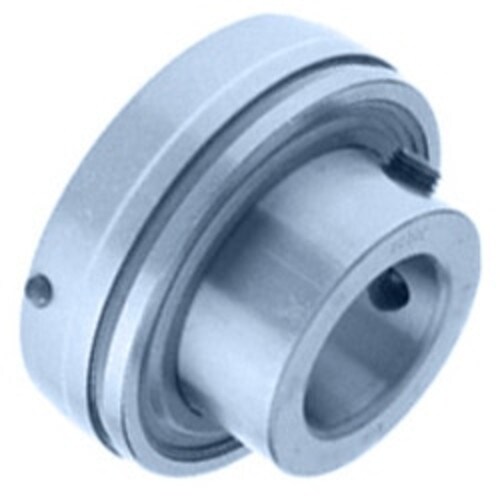

123355 INS-SCM-111 - DODGE
Set Screw Locking Type (Spherical) - Bore (In): 1.688 - Bore (Mm): 42.875 - Outside Diameter (In): 3.543 - Outside Diameter (Mm): 89.992
SPECIFICATIONS
| Rolling Element | Ball Bearing |
|---|---|
| Relubricatable | Yes |
| Snap Ring | No |
| Inner Race Profile | Wide Inner Ring |
| Seal Type | Single Lip Contact |
| Bore / Inner Diameter Inch | 1.688 |
| Bore / Inner Diameter MM | 42.875 |
| Outside Diameter Inch | 3.543 |
| Outside Diameter MM | 89.992 |
| Bearing Locking Style | Set Screw |
| Bearing Profile | Spherical |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Length Across Bore Inch | 1.75 |
| Length Across Bore MM | 44.45 |
| Number of Mounting Holes | 2 |
| Outer Race Width Inch | 0.866 |
| Outer Race Width MM | 21.996 |
