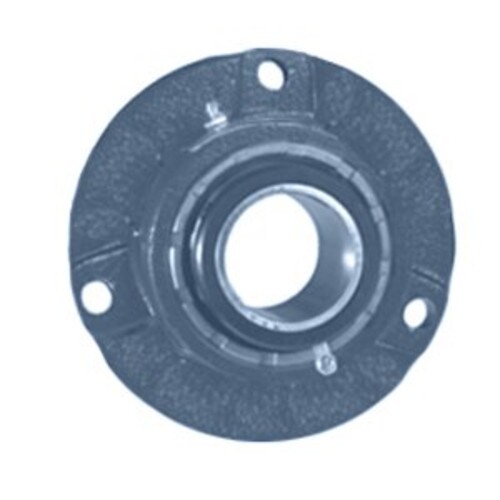

ZB2102S - REXNORD
- Bore / Inner Diameter Inch: 1.125
- Bore / Inner Diameter MM: 28.575
- Number of Mounting Holes: 3
- Bolt Center to Center Inch: 3.891
- Bolt Center to Center MM: 98.83
- Nom Bolt Circle Dia Round Inch: 4.5
- Nom Bolt Circle Dia Round MM: 113.1
- Bearing Locking Style: Concentric Collar
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.125 |
|---|---|
| Bore / Inner Diameter MM | 28.575 |
| Number of Mounting Holes | 3 |
| Bolt Center to Center Inch | 3.891 |
| Bolt Center to Center MM | 98.83 |
| Nom Bolt Circle Dia Round Inch | 4.5 |
| Nom Bolt Circle Dia Round MM | 113.1 |
| Bearing Locking Style | Concentric Collar |
| Rolling Element | Spherical Roller Bearing |
| Housing Material | Cast Iron |
| Housing Style | 3 Bolt Round Flange Block |
| Expansion / Non-Expansion | Non-expansion |
| Bearing Insert Part Number | 2102U |
| Length Across Bore Inch | 2.688 |
| Length Across Bore MM | 68.275 |
| Cartridge Pilot Depth Inch | 0.188 |
| Cartridge Pilot Depth MM | 4.775 |
