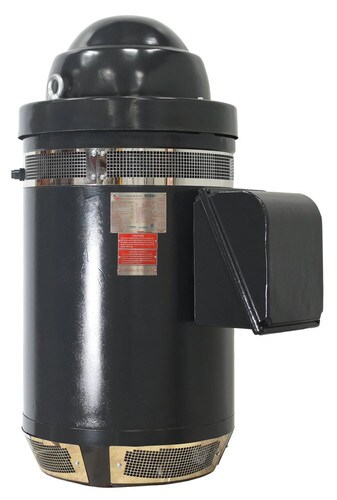

V2-60S4-W36416A - NORTH AMERICAN
- HP: 60
- Full Load RPM: 1787
- Enclosure: WP1
- Frame: 364TP
NEMA DESIGN B
- Maximum 5% Slip
- High To Medium Starting Current
- Normal Locked Rotor Torque
- Normal Breakdown Torque
- Suited For A Broad Variety Of Applications - Like Fans And Pumps
SPECIFICATIONS
| Full Load RPM | 1800.0 |
|---|---|
| RPM | 1770.0 |
| Frame | 364TP |
| Voltage | 460 VAC |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | B |
| NEMA Code | H |
| Locked Rotor Amps at Rated Voltage | 505.0 |
| Power Factor | 0.87 |
| Drive End Bottom Bearing | 6314 |
| Inverter Rated or Duty | Inverter Duty |
| Phase | Three Phase |
| Down Thrust | 5600.0 |
| Part Winding Start 460V | Yes |
| Model Number | V2-60S4-W36416A |
| Weight (lbs) | 983.0 |
| Application | Vertical Hollow Shaft |
| HP Range | 60.0 |
| HP | 60.0 |
| GTIN | 192999035665 |
| Motor Enclosure Type | Weather Protected|WP1 |
| RPM Range | 1770.0 |
