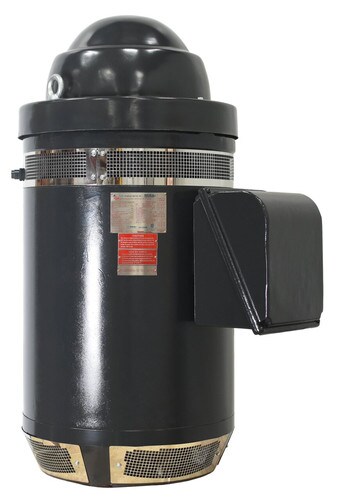

V2-450S4-W500824A-EHT - NORTH AMERICAN
- HP: 450
- Full Load RPM: 1790
- Enclosure: WP1
- Frame: 5008P
NEMA DESIGN B
- Maximum 5% Slip
- High To Medium Starting Current
- Normal Locked Rotor Torque
- Normal Breakdown Torque
- Suited For A Broad Variety Of Applications - Like Fans And Pumps
SPECIFICATIONS
| Full Load RPM | 1800.0 |
|---|---|
| RPM | 1780.0 |
| Frame | 5008P |
| Voltage | 460 VAC |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | B |
| NEMA Code | G |
| Locked Rotor Amps at Rated Voltage | 3375.0 |
| Power Factor | 0.9 |
| Drive End Bottom Bearing | 6322 |
| Inverter Rated or Duty | Inverter Duty |
| Phase | Three Phase |
| Down Thrust | 24000.0 |
| Part Winding Start 460V | Yes |
| Model Number | V2-450S4-W500824A-EHT |
| Weight (lbs) | 4193.0 |
| Application | Vertical Hollow Shaft |
| HP Range | 450.0 |
| HP | 450.0 |
| GTIN | 192999035719 |
| Motor Enclosure Type | Weather Protected|WP1 |
| RPM Range | 1780.0 |
