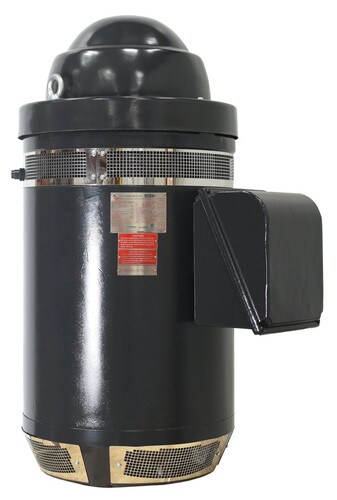

V2-200S4-W44516A-EHT - NORTH AMERICAN
- HP: 200
- Full Load RPM: 1788
- Enclosure: WP1
- Frame: 445TP
NEMA DESIGN B
- Maximum 5% Slip
- High To Medium Starting Current
- Normal Locked Rotor Torque
- Normal Breakdown Torque
- Suited For A Broad Variety Of Applications - Like Fans And Pumps
SPECIFICATIONS
| Full Load RPM | 1800.0 |
|---|---|
| RPM | 1780.0 |
| Frame | 445TP |
| Voltage | 460 VAC |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | B |
| NEMA Code | G |
| Locked Rotor Amps at Rated Voltage | 1462.0 |
| Power Factor | 0.88 |
| Drive End Bottom Bearing | 6318 |
| Inverter Rated or Duty | Inverter Duty |
| Phase | Three Phase |
| Down Thrust | 14400.0 |
| Part Winding Start 460V | Yes |
| Model Number | V2-200S4-W44516A-EHT |
| Weight (lbs) | 2099.0 |
| Application | Vertical Hollow Shaft |
| HP Range | 200.0 |
| HP | 200.0 |
| GTIN | 192999035474 |
| Motor Enclosure Type | Weather Protected|WP1 |
| RPM Range | 1780.0 |
