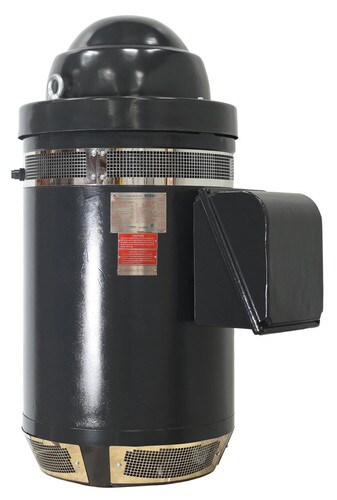

V2-150S4-W44416A-EHT - NORTH AMERICAN
- HP: 150
- Full Load RPM: 1788
- Enclosure: WP1
- Frame: 444TP
NEMA DESIGN B
- Maximum 5% Slip
- High To Medium Starting Current
- Normal Locked Rotor Torque
- Normal Breakdown Torque
- Suited For A Broad Variety Of Applications - Like Fans And Pumps
SPECIFICATIONS
Full Load RPM | 1800.0 |
---|---|
RPM | 1780.0 |
Frame | 444TP |
Voltage | 460 VAC |
Service Factor | 1.15 |
Insulation Class | F |
NEMA Design | B |
NEMA Code | H |
Locked Rotor Amps at Rated Voltage | 1188.0 |
Power Factor | 0.88 |
Drive End Bottom Bearing | 6318 |
Inverter Rated or Duty | Inverter Duty |
Phase | Three Phase |
Down Thrust | 14400.0 |
Part Winding Start 460V | Yes |
Model Number | V2-150S4-W44416A-EHT |
Weight (lbs) | 1984.0 |
Application | Vertical Hollow Shaft |
HP Range | 150.0 |
HP | 150.0 |
GTIN | 192999035412 |
Motor Enclosure Type | Weather Protected|WP1 |
RPM Range | 1780.0 |
