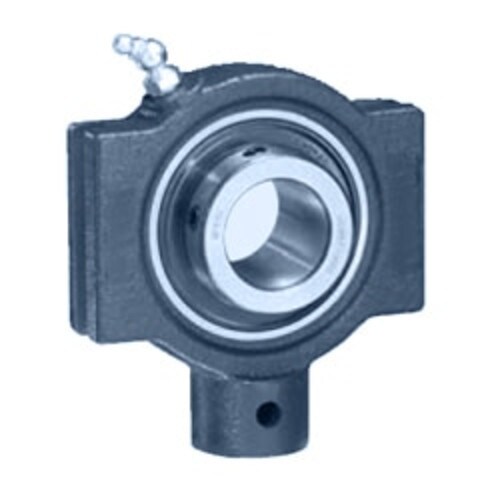

UCTRS 207 20 - IPTCI
- Slot to Slot Distance Inch: 3.5
- Slot to Slot Distance MM: 88.9
- Slot Width Inch: 0.313
- Slot Width MM: 7.95
- Bearing Insert Part Number: UC207-20
- Bore / Inner Diameter Inch: 1.25
SPECIFICATIONS
| Slot to Slot Distance Inch | 3.5 |
|---|---|
| Slot to Slot Distance MM | 88.9 |
| Slot Width Inch | 0.313 |
| Slot Width MM | 7.95 |
| Bearing Insert Part Number | UC207-20 |
| Bore / Inner Diameter Inch | 1.25 |
| Bore / Inner Diameter MM | 31.75 |
| Housing Style | Unit Only |
| Housing Material | Cast Iron |
| Bearing Locking Style | Set Screw |
| Compatible Take-Up Frame | Not Specified |
