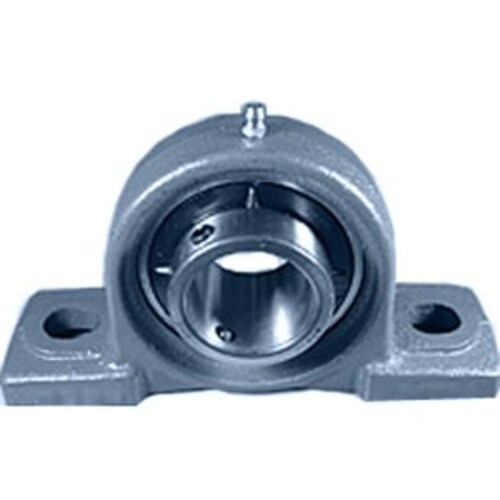

UCPX11-203D1 - NTN
- Bore / Inner Diameter Inch: 2.188
- Bore / Inner Diameter MM: 55.575
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 7.3
- Bolt Center to Center MM: 185.4
- Bearing Locking Style: Set Screw
SPECIFICATIONS
| Bore / Inner Diameter Inch | 2.188 |
|---|---|
| Bore / Inner Diameter MM | 55.575 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 7.3 |
| Bolt Center to Center MM | 185.4 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Expansion / Non-Expansion | Non-expansion |
| Base to Center Height Inch | 2.75 |
| Base to Center Height MM | 69.85 |
| Bearing Insert Part Number | UCX11-203D1 |
