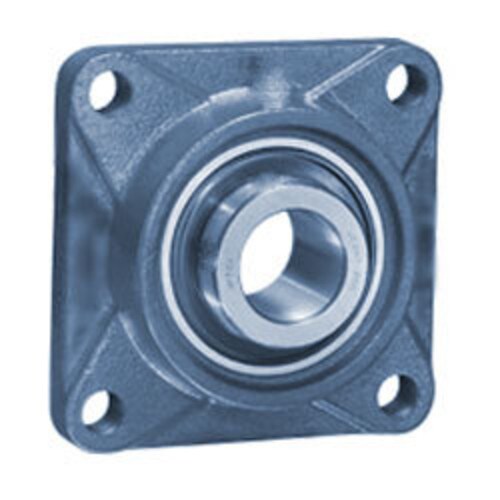

UCFX 07 22 - IPTCI
- Bore / Inner Diameter Inch: 1.375
- Bore / Inner Diameter MM: 34.925
- Number of Mounting Holes: 4
- Bolt Center to Center Inch: 4
- Bolt Center to Center MM: 102
- Nom Bolt Circle Dia Round Inch: 5.7
- Nom Bolt Circle Dia Round MM: 144
- Bearing Locking Style: Set Screw
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.375 |
|---|---|
| Bore / Inner Diameter MM | 34.925 |
| Number of Mounting Holes | 4 |
| Bolt Center to Center Inch | 4 |
| Bolt Center to Center MM | 102 |
| Nom Bolt Circle Dia Round Inch | 5.7 |
| Nom Bolt Circle Dia Round MM | 144 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Square Flange Block |
| Expansion / Non-Expansion | Non-expansion |
| Length Across Bore Inch | 1.937 |
| Length Across Bore MM | 49.2 |
