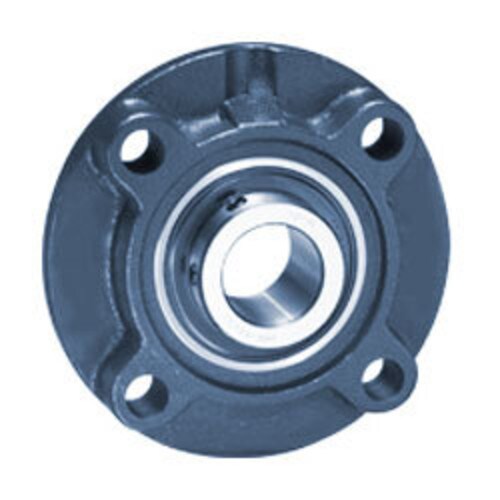

UCFC 207 22 - IPTCI
- Bore / Inner Diameter Inch: 1.375
- Bore / Inner Diameter MM: 34.925
- Number of Mounting Holes: 4
- Bolt Center to Center Inch: 3.1
- Bolt Center to Center MM: 78.5
- Nom Bolt Circle Dia Round Inch: 4.4
- Nom Bolt Circle Dia Round MM: 111
- Bearing Locking Style: Set Screw
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.375 |
|---|---|
| Bore / Inner Diameter MM | 34.925 |
| Number of Mounting Holes | 4 |
| Bolt Center to Center Inch | 3.1 |
| Bolt Center to Center MM | 78.5 |
| Nom Bolt Circle Dia Round Inch | 4.4 |
| Nom Bolt Circle Dia Round MM | 111 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Expansion / Non-Expansion | Non-expansion |
| Length Across Bore Inch | 1.689 |
| Length Across Bore MM | 42.9 |
| Cartridge Pilot Depth Inch | 0.313 |
| Cartridge Pilot Depth MM | 7.95 |
| Cartridge Pilot Diameter Inch | 3.543 |
| Cartridge Pilot Diameter MM | 90 |
