SPB3550 - BESTORQ

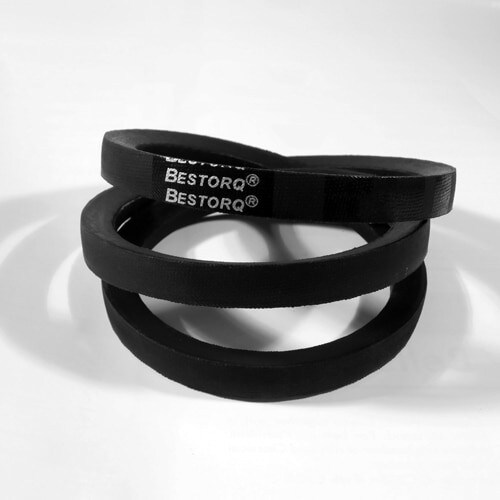

The Bestorq SPB3550 is a raw, narrow-edge classical V-belt. It has a synthetic outer jacket covering with a belt transmission power between 0.5 kW and 6 kW. The outer jacket covering is made of man-made fibers and cotton material. It has a greater load capacity and bends easily around small shifts. The Bestorq SPB3550 is designed to withstand high-intensity abrasion, and it is oil and heat-resistant. The deep, rubber, narrow edges are engineered to be flexible, wear-resistant, and cool running.
The raw-edge belt installs easily and does not require any lubrication. Underneath the protective coverings are a base rubber compound and steel wire. The internal tensile cables are surrounded by the tension section on the top edges of the belt and the compression section on the bottom of the belt. The SPB3550 meets RMA standards for measurements and dimensions and exceeds RMA published ratings.
SPECIFICATIONS
Belt Width Inch | 0.66 |
---|---|
Belt Width MM | 16.8 |
Outside Belt Diameter Inch | 140.63 |
Outside Belt Diameter MM | 3572.0 |
Belt Thickness / Sidewall Depth Inch | 0.53 |
Belt Thickness / Sidewall Depth MM | 13.5 |
GTIN | 840593137161 |
Model Number | SPB3550 |
