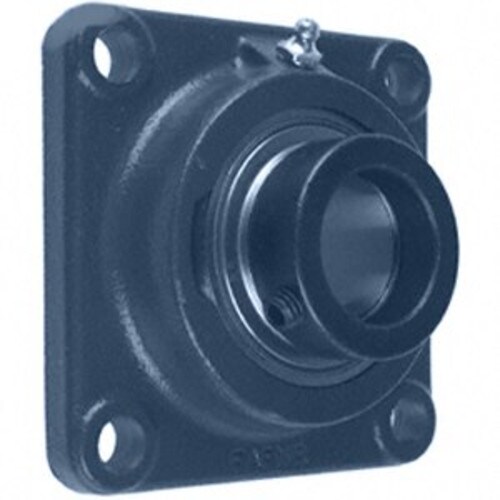

RCJ2 7/16 - TIMKEN
- Bore / Inner Diameter Inch: 2.438
- Bore / Inner Diameter MM: 61.925
- Number of Mounting Holes: 4
- Nom Bolt Circle Dia Round Inch: 7.9
- Nom Bolt Circle Dia Round MM: 200
- Bearing Locking Style: Eccentric Collar
SPECIFICATIONS
| Bore / Inner Diameter Inch | 2.438 |
|---|---|
| Bore / Inner Diameter MM | 61.925 |
| Number of Mounting Holes | 4 |
| Nom Bolt Circle Dia Round Inch | 7.9 |
| Nom Bolt Circle Dia Round MM | 200 |
| Bearing Locking Style | Eccentric Collar |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Square Flange Block |
| Expansion / Non-Expansion | Non-expansion |
| Bearing Insert Part Number | G1207KRRB |
| Length Across Bore Inch | 1.484 |
| Length Across Bore MM | 37.7 |
| Mounting Bolts Inch | 43/64 |
