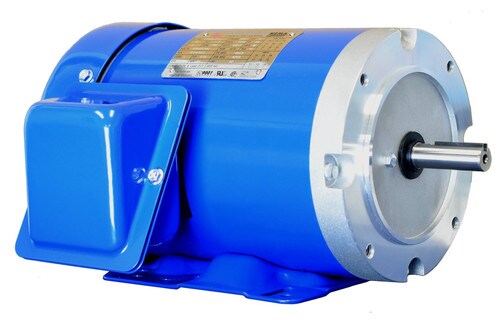

PR56C1.5M2A-575V - NORTH AMERICAN
This product has superseded PR56C1.5M2D
- HP: 1.5
- Phase: Three
- Full Load RPM: 3510
- Enclosure: TEFC
NEMA DESIGN B
- Maximum 5% Slip
- High To Medium Starting Current
- Normal Locked Rotor Torque
- Normal Breakdown Torque
- Suited For A Broad Variety Of Applications - Like Fans And Pumps
SPECIFICATIONS
| Material | Rolled Steel |
|---|---|
| Full Load RPM | 3600.0 |
| RPM | 3600.0 |
| Frame | 56C |
| Full Load Amps at Rated Voltage | 70.0 |
| Frequency Hz | 60.0 |
| Voltage | 575 VAC |
| Full Load Efficiency Percentage | 95.0 |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | B |
| NEMA Code | N |
| Locked Rotor Amps at Rated Voltage | 12.3 |
| Power Factor | 0.86 |
| Drive End Bottom Bearing | 6203-2RZC3 |
| Opposite Drive End Upper Bearing | 6313/C3 |
| Drive End Upper Bearing | 6313/C3 |
| Opposite Drive End Bottom Bearing | 6313/C3 |
| Inverter Rated or Duty | Inverter Rated |
| Phase | Three Phase |
| Model Number | PR56C1.5M2A-575V |
| Weight (lbs) | 27.0 |
| HP Range | 1.5 |
| HP | 1.5 |
| GTIN | 192999033746 |
| Enclosure Height Inch | 18.1 |
| Enclosure Height MM | 459.74 |
| Enclosure Length Inch | 26.62 |
| Enclosure Length MM | 676.148 |
| Motor Enclosure Type | Totally Enclosed|TEFC |
| RPM Range | 3600.0 |
