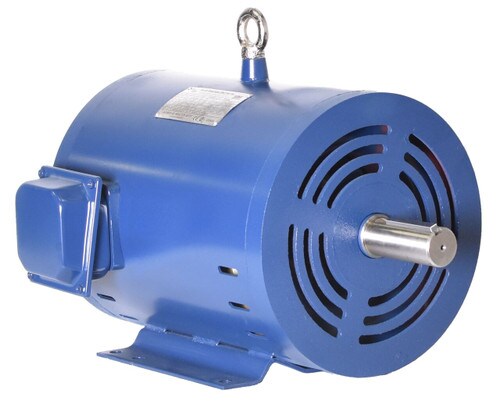

PR254T15M4A-ODP - NORTH AMERICAN
- HP: 15
- Phase: Three
- Full Load RPM: 1760
- Enclosure: ODP
NEMA DESIGN B
- Maximum 5% Slip
- High To Medium Starting Current
- Normal Locked Rotor Torque
- Normal Breakdown Torque
- Suited For A Broad Variety Of Applications - Like Fans And Pumps
SPECIFICATIONS
| Material | Rolled Steel |
|---|---|
| Full Load RPM | 1800.0 |
| RPM | 1800.0 |
| Frame | 254T |
| Full Load Amps at Rated Voltage | 70.0 |
| Frequency Hz | 60.0 |
| Voltage | 208/230/460 VAC|208 VAC|230 VAC|460 VAC|230/460 VAC |
| Full Load Efficiency Percentage | 95.0 |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | B |
| NEMA Code | G |
| Locked Rotor Amps at Rated Voltage | 133.0 |
| Power Factor | 0.79 |
| Drive End Bottom Bearing | 6309-2RZC3 |
| Opposite Drive End Upper Bearing | 6313/C3 |
| Drive End Upper Bearing | 6313/C3 |
| Opposite Drive End Bottom Bearing | 6313/C3 |
| Inverter Rated or Duty | Inverter Duty |
| Phase | Three Phase |
| Model Number | PR254T15M4A-ODP |
| Weight (lbs) | 230.0 |
| HP Range | 15.0 |
| HP | 15.0 |
| GTIN | 192999024850 |
| Enclosure Height Inch | 18.1 |
| Enclosure Height MM | 459.74 |
| Enclosure Length Inch | 26.62 |
| Enclosure Length MM | 676.148 |
| Motor Enclosure Type | ODP|Open |
| RPM Range | 1800.0 |
