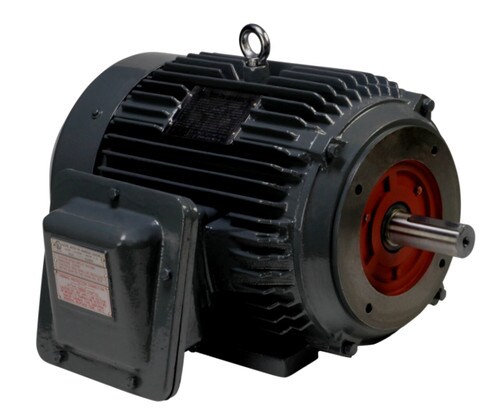

PEXP405TSC-100-2 - NORTH AMERICAN

(0)No Reviews yet
$11,636.44

Details

Details

MaterialCast Iron
Full Load RPM3600.0
RPM3600.0
Frame405TSC
Full Load Amps at Rated Voltage87.0
Frequency Hz60.0
Voltage208/230/460 VAC|208 VAC|230 VAC|460 VAC|230/460 VAC
Full Load Efficiency Percentage95.4
Service Factor1.15
Insulation ClassF
NEMA DesignB
NEMA CodeG
Locked Rotor Amps at Rated Voltage725.0
Power Factor0.89
Drive End Bottom Bearing6313/C3
Opposite Drive End Upper Bearing6313
Drive End Upper Bearing6313
Opposite Drive End Bottom Bearing6313
Inverter Rated or DutyInverter Rated
PhaseThree Phase
Model NumberPEXP405TSC-100-2
Weight (lbs)1393.0
ApplicationExplosion Proof
HP Range100.0
HP100.0
GTIN192999056448
Enclosure Height Inch18.5
Enclosure Height MM469.9
Enclosure Length Inch36.0
Enclosure Length MM914.4
Motor Enclosure TypeExplosion Proof|TEXP|Totally Enclosed
RPM Range3600.0

UNIT PRICE:

$11,636.44



UNIT PRICE:

SPECIFICATIONS

MaterialCast Iron
Full Load RPM3600.0
RPM3600.0
Frame405TSC
Full Load Amps at Rated Voltage87.0
Frequency Hz60.0
Voltage208/230/460 VAC|208 VAC|230 VAC|460 VAC|230/460 VAC
Full Load Efficiency Percentage95.4
Service Factor1.15
Insulation ClassF
NEMA DesignB
NEMA CodeG
Locked Rotor Amps at Rated Voltage725.0
Power Factor0.89
Drive End Bottom Bearing6313/C3
Opposite Drive End Upper Bearing6313
Drive End Upper Bearing6313
Opposite Drive End Bottom Bearing6313
Inverter Rated or DutyInverter Rated
PhaseThree Phase
Model NumberPEXP405TSC-100-2
Weight (lbs)1393.0
ApplicationExplosion Proof
HP Range100.0
HP100.0
GTIN192999056448
Enclosure Height Inch18.5
Enclosure Height MM469.9
Enclosure Length Inch36.0
Enclosure Length MM914.4
Motor Enclosure TypeExplosion Proof|TEXP|Totally Enclosed
RPM Range3600.0
