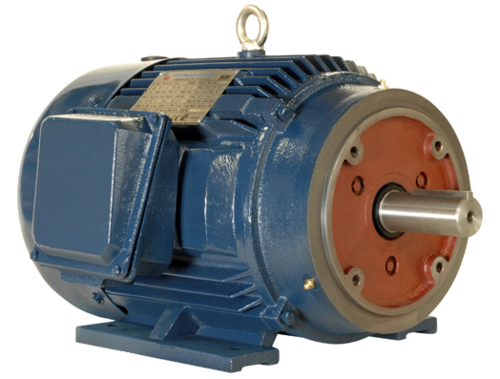

PE284TSC-25-4 - NORTH AMERICAN
- HP: 25
- Phase: Three
- Full Load RPM: 1775
- Enclosure: TEFC
NEMA DESIGN B
- Maximum 5% Slip
- High To Medium Starting Current
- Normal Locked Rotor Torque
- Normal Breakdown Torque
- Suited For A Broad Variety Of Applications - Like Fans And Pumps
SPECIFICATIONS
| Material | Cast Iron |
|---|---|
| Full Load RPM | 1800.0 |
| RPM | 1800.0 |
| Frame | 284TSC |
| Full Load Amps at Rated Voltage | 489.0 |
| Frequency Hz | 60.0 |
| Voltage | 208/230/460 VAC|208 VAC|230 VAC|460 VAC|230/460 VAC |
| Full Load Efficiency Percentage | 96.2 |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | B |
| NEMA Code | G |
| Locked Rotor Amps at Rated Voltage | 182.0 |
| Power Factor | 0.84 |
| Drive End Bottom Bearing | 6311 |
| Opposite Drive End Upper Bearing | 6322 |
| Drive End Upper Bearing | 7236B/DT |
| Opposite Drive End Bottom Bearing | 6322 |
| Inverter Rated or Duty | Inverter Duty |
| Phase | Three Phase |
| Model Number | PE284TSC-25-4 |
| Weight (lbs) | 396.0 |
| Application | Heavy Duty |
| HP Range | 25.0 |
| HP | 25.0 |
| GTIN | 192999064450 |
| Motor Enclosure Type | Totally Enclosed|TEFC |
| RPM Range | 1800.0 |
