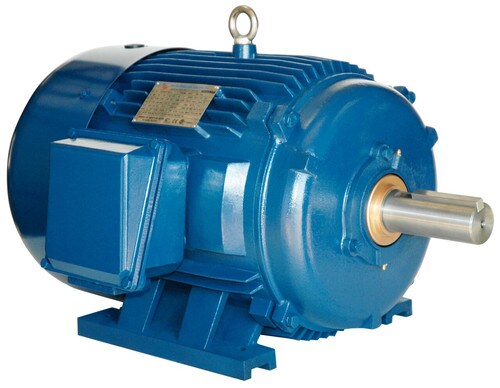

PE215T-15-2 - NORTH AMERICAN
- HP: 15
- Phase: Three
- Full Load RPM: 3510
- Enclosure: TEFC
NEMA DESIGN B
- Maximum 5% Slip
- High To Medium Starting Current
- Normal Locked Rotor Torque
- Normal Breakdown Torque
- Suited For A Broad Variety Of Applications - Like Fans And Pumps
SPECIFICATIONS
| Material | Cast Iron |
|---|---|
| Full Load RPM | 3600.0 |
| RPM | 3600.0 |
| Frame | 215T |
| Full Load Amps at Rated Voltage | 44.5 |
| Frequency Hz | 60.0 |
| Voltage | 208/230/460 VAC|208 VAC|230 VAC|460 VAC|230/460 VAC |
| Full Load Efficiency Percentage | 92.4 |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | B |
| NEMA Code | G |
| Locked Rotor Amps at Rated Voltage | 116.0 |
| Power Factor | 0.91 |
| Drive End Bottom Bearing | 6308-ZZ |
| Opposite Drive End Upper Bearing | 6311 |
| Drive End Upper Bearing | 6311 |
| Opposite Drive End Bottom Bearing | 6311 |
| Inverter Rated or Duty | Inverter Duty |
| Phase | Three Phase |
| Model Number | PE215T-15-2 |
| Weight (lbs) | 179.0 |
| Application | Heavy Duty |
| HP Range | 15.0 |
| HP | 15.0 |
| GTIN | 192999014073 |
| Enclosure Height Inch | 14.5 |
| Enclosure Height MM | 368.3 |
| Enclosure Length Inch | 28.97 |
| Enclosure Length MM | 735.838 |
| Motor Enclosure Type | Totally Enclosed|TEFC |
| RPM Range | 3600.0 |
