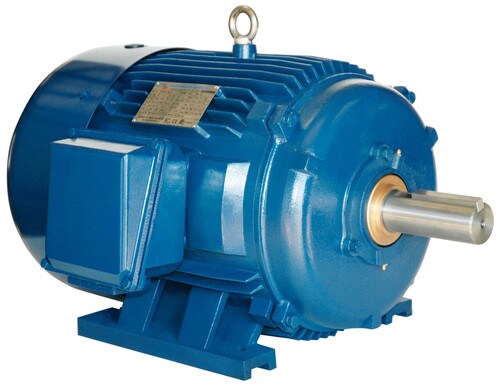

North American PE184T-5-2 Heavy Duty Electric Motor
- HP: 5
- Phase: Three
- Full Load RPM: 3515
- Enclosure: TEFC
NEMA DESIGN B
- Maximum 5% Slip
- High To Medium Starting Current
- Normal Locked Rotor Torque
- Normal Breakdown Torque
- Suited For A Broad Variety Of Applications - Like Fans And Pumps
SPECIFICATIONS
| Material | Cast Iron |
|---|---|
| Full Load RPM | 3600.0 |
| RPM | 3600.0 |
| Frame | 184T |
| Full Load Amps at Rated Voltage | 22.0 |
| Frequency Hz | 60.0 |
| Voltage | 208/230/460 VAC|208 VAC|230 VAC|460 VAC|230/460 VAC |
| Full Load Efficiency Percentage | 82.5 |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | B |
| NEMA Code | J |
| Locked Rotor Amps at Rated Voltage | 46.0 |
| Power Factor | 0.9 |
| Drive End Bottom Bearing | 6306-ZZ |
| Opposite Drive End Upper Bearing | 6311 |
| Drive End Upper Bearing | 6311 |
| Opposite Drive End Bottom Bearing | 6311 |
| Inverter Rated or Duty | Inverter Duty |
| Phase | Three Phase |
| Model Number | PE184T-5-2 |
| Weight (lbs) | 102.0 |
| Application | Heavy Duty |
| HP Range | 5.0 |
| HP | 5.0 |
| GTIN | 192999004791 |
| Enclosure Height Inch | 14.3 |
| Enclosure Height MM | 363.22 |
| Enclosure Length Inch | 24.8 |
| Enclosure Length MM | 629.92 |
| Motor Enclosure Type | Totally Enclosed|TEFC |
| RPM Range | 3600.0 |
