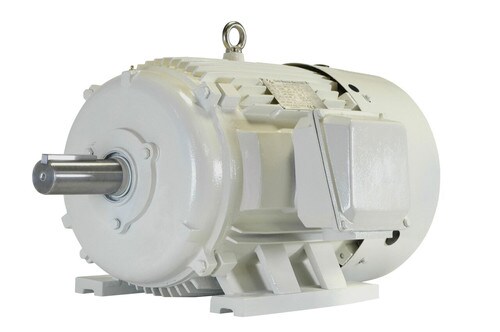

OWP326T-30-6 - NORTH AMERICAN

(0)No Reviews yet
$2,485.05

Details

Details

MaterialCast Iron
Full Load RPM1130.0
RPM1200.0
Frame326T
Full Load Amps at Rated Voltage357.0
Frequency Hz60.0
Voltage230/460/796 VAC|230 VAC|460 VAC|796 VAC
Full Load Efficiency Percentage95.0
Service Factor1.15
Insulation ClassF
NEMA DesignD
NEMA CodeG
Locked Rotor Amps at Rated Voltage217.0
Power Factor0.85
Drive End Bottom Bearing6312
Opposite Drive End Upper Bearing6318
Drive End Upper Bearing6319
Opposite Drive End Bottom Bearing6318
Inverter Rated or DutyInverter Duty
PhaseThree Phase
Flange Mount StyleC-Flange with Feet
Model NumberOWP326T-30-6
Weight (lbs)572.0
ApplicationOil Well Pump
HP Range30.0
HP30.0
GTIN192999028339
Enclosure Height Inch23.0
Enclosure Height MM584.2
Enclosure Length Inch52.8
Enclosure Length MM1341.12
Motor Enclosure TypeTotally Enclosed|TEFC
RPM Range1200.0

UNIT PRICE:

$2,485.05



UNIT PRICE:

SPECIFICATIONS

MaterialCast Iron
Full Load RPM1130.0
RPM1200.0
Frame326T
Full Load Amps at Rated Voltage357.0
Frequency Hz60.0
Voltage230/460/796 VAC|230 VAC|460 VAC|796 VAC
Full Load Efficiency Percentage95.0
Service Factor1.15
Insulation ClassF
NEMA DesignD
NEMA CodeG
Locked Rotor Amps at Rated Voltage217.0
Power Factor0.85
Drive End Bottom Bearing6312
Opposite Drive End Upper Bearing6318
Drive End Upper Bearing6319
Opposite Drive End Bottom Bearing6318
Inverter Rated or DutyInverter Duty
PhaseThree Phase
Flange Mount StyleC-Flange with Feet
Model NumberOWP326T-30-6
Weight (lbs)572.0
ApplicationOil Well Pump
HP Range30.0
HP30.0
GTIN192999028339
Enclosure Height Inch23.0
Enclosure Height MM584.2
Enclosure Length Inch52.8
Enclosure Length MM1341.12
Motor Enclosure TypeTotally Enclosed|TEFC
RPM Range1200.0
