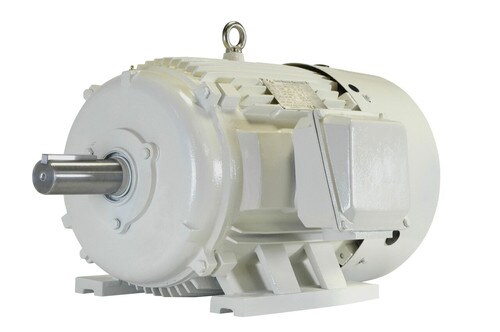

OWP326T-25-8 - NORTH AMERICAN
- HP: 25
- Phase: Three
- Full Load RPM: 850
- Enclosure: TEFC
NEMA DESIGN D
- Maximum 5-13% Slip
- Low Starting Current
- Very High Locked Rotor Torque
- Suited For Equipment With Very High Inertia Starts - Like Cranes, Hoists Etc.
SPECIFICATIONS
| Material | Cast Iron |
|---|---|
| Full Load RPM | 850.0 |
| RPM | 900.0 |
| Frame | 326T |
| Full Load Amps at Rated Voltage | 220.0 |
| Frequency Hz | 60.0 |
| Voltage | 230/460/796 VAC|230 VAC|460 VAC|796 VAC |
| Full Load Efficiency Percentage | 96.2 |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | D |
| NEMA Code | G |
| Locked Rotor Amps at Rated Voltage | 182.0 |
| Power Factor | 0.71 |
| Drive End Bottom Bearing | 6312 |
| Opposite Drive End Upper Bearing | 6318 |
| Drive End Upper Bearing | 6319 |
| Opposite Drive End Bottom Bearing | 6318 |
| Inverter Rated or Duty | Inverter Duty |
| Phase | Three Phase |
| Flange Mount Style | C-Flange with Feet |
| Model Number | OWP326T-25-8 |
| Weight (lbs) | 493.0 |
| Application | Oil Well Pump |
| HP Range | 25.0 |
| HP | 25.0 |
| GTIN | 192999028322 |
| Enclosure Height Inch | 23.0 |
| Enclosure Height MM | 584.2 |
| Enclosure Length Inch | 47.8 |
| Enclosure Length MM | 1214.12 |
| Motor Enclosure Type | Totally Enclosed|TEFC |
| RPM Range | 900.0 |
