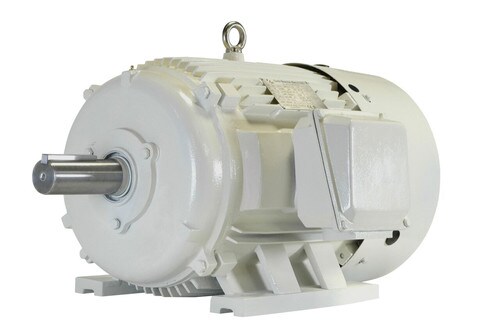

OWP286T-15-8 - NORTH AMERICAN
- HP: 15
- Phase: Three
- Full Load RPM: 855
- Enclosure: TEFC
NEMA DESIGN D
- Maximum 5-13% Slip
- Low Starting Current
- Very High Locked Rotor Torque
- Suited For Equipment With Very High Inertia Starts - Like Cranes, Hoists Etc.
SPECIFICATIONS
| Material | Cast Iron |
|---|---|
| Full Load RPM | 855.0 |
| RPM | 900.0 |
| Frame | 286T |
| Full Load Amps at Rated Voltage | 44.5 |
| Frequency Hz | 60.0 |
| Voltage | 230/460/796 VAC|230 VAC|460 VAC|796 VAC |
| Full Load Efficiency Percentage | 92.4 |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | D |
| NEMA Code | G |
| Locked Rotor Amps at Rated Voltage | 116.0 |
| Power Factor | 0.69 |
| Drive End Bottom Bearing | 6311 |
| Opposite Drive End Upper Bearing | 6311 |
| Drive End Upper Bearing | 6311 |
| Opposite Drive End Bottom Bearing | 6311 |
| Inverter Rated or Duty | Inverter Duty |
| Phase | Three Phase |
| Model Number | OWP286T-15-8 |
| Weight (lbs) | 337.0 |
| Application | Oil Well Pump |
| HP Range | 15.0 |
| HP | 15.0 |
| GTIN | 192999028476 |
| Enclosure Height Inch | 14.5 |
| Enclosure Height MM | 368.3 |
| Enclosure Length Inch | 31.85 |
| Enclosure Length MM | 808.99 |
| Motor Enclosure Type | Totally Enclosed|TEFC |
| RPM Range | 900.0 |
