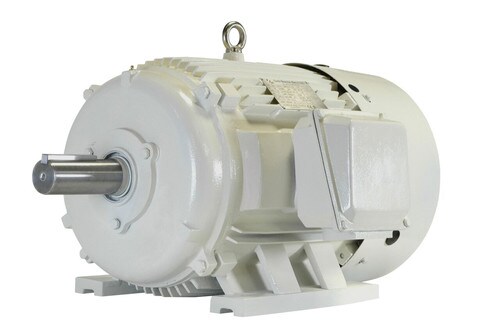

OWP284T-10-8 - NORTH AMERICAN

(0)No Reviews yet
$1,741.25

Details

Details

MaterialCast Iron
Full Load RPM850.0
RPM900.0
Frame284T
Full Load Amps at Rated Voltage357.0
Frequency Hz60.0
Voltage230/460/796 VAC|230 VAC|460 VAC|796 VAC
Full Load Efficiency Percentage95.0
Service Factor1.15
Insulation ClassF
NEMA DesignD
NEMA CodeH
Locked Rotor Amps at Rated Voltage81.0
Power Factor0.68
Drive End Bottom Bearing6311
Opposite Drive End Upper Bearing6318
Drive End Upper Bearing6319
Opposite Drive End Bottom Bearing6318
Inverter Rated or DutyInverter Duty
PhaseThree Phase
Flange Mount StyleC-Flange with Feet
Model NumberOWP284T-10-8
Weight (lbs)283.0
ApplicationOil Well Pump
HP Range10.0
HP10.0
GTIN192999028391
Enclosure Height Inch23.0
Enclosure Height MM584.2
Enclosure Length Inch52.8
Enclosure Length MM1341.12
Motor Enclosure TypeTotally Enclosed|TEFC
RPM Range900.0

UNIT PRICE:

$1,741.25



UNIT PRICE:

SPECIFICATIONS

MaterialCast Iron
Full Load RPM850.0
RPM900.0
Frame284T
Full Load Amps at Rated Voltage357.0
Frequency Hz60.0
Voltage230/460/796 VAC|230 VAC|460 VAC|796 VAC
Full Load Efficiency Percentage95.0
Service Factor1.15
Insulation ClassF
NEMA DesignD
NEMA CodeH
Locked Rotor Amps at Rated Voltage81.0
Power Factor0.68
Drive End Bottom Bearing6311
Opposite Drive End Upper Bearing6318
Drive End Upper Bearing6319
Opposite Drive End Bottom Bearing6318
Inverter Rated or DutyInverter Duty
PhaseThree Phase
Flange Mount StyleC-Flange with Feet
Model NumberOWP284T-10-8
Weight (lbs)283.0
ApplicationOil Well Pump
HP Range10.0
HP10.0
GTIN192999028391
Enclosure Height Inch23.0
Enclosure Height MM584.2
Enclosure Length Inch52.8
Enclosure Length MM1341.12
Motor Enclosure TypeTotally Enclosed|TEFC
RPM Range900.0
