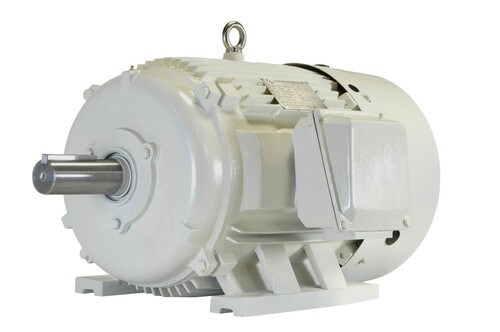

OWP184T-2-6 - NORTH AMERICAN
- HP: 2
- Phase: Three
- Full Load RPM: 1135
- Enclosure: TEFC
NEMA DESIGN D
- Maximum 5-13% Slip
- Low Starting Current
- Very High Locked Rotor Torque
- Suited For Equipment With Very High Inertia Starts - Like Cranes, Hoists Etc.
SPECIFICATIONS
| Material | Cast Iron |
|---|---|
| Full Load RPM | 1135.0 |
| RPM | 1200.0 |
| Frame | 184T |
| Full Load Amps at Rated Voltage | 58.3 |
| Frequency Hz | 60.0 |
| Voltage | 230/460/796 VAC|230 VAC|460 VAC|796 VAC |
| Full Load Efficiency Percentage | 94.5 |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | D |
| NEMA Code | K |
| Locked Rotor Amps at Rated Voltage | 25.0 |
| Power Factor | 0.69 |
| Drive End Bottom Bearing | 6306-ZZ |
| Opposite Drive End Upper Bearing | 6312 |
| Drive End Upper Bearing | 6312 |
| Opposite Drive End Bottom Bearing | 6312 |
| Inverter Rated or Duty | Inverter Duty |
| Phase | Three Phase |
| Model Number | OWP184T-2-6 |
| Weight (lbs) | 87.0 |
| Application | Oil Well Pump |
| HP Range | 2.0 |
| HP | 2.0 |
| GTIN | 192999033616 |
| Enclosure Height Inch | 15.9 |
| Enclosure Height MM | 403.86 |
| Enclosure Length Inch | 34.43 |
| Enclosure Length MM | 874.522 |
| Motor Enclosure Type | Totally Enclosed|TEFC |
| RPM Range | 1200.0 |
