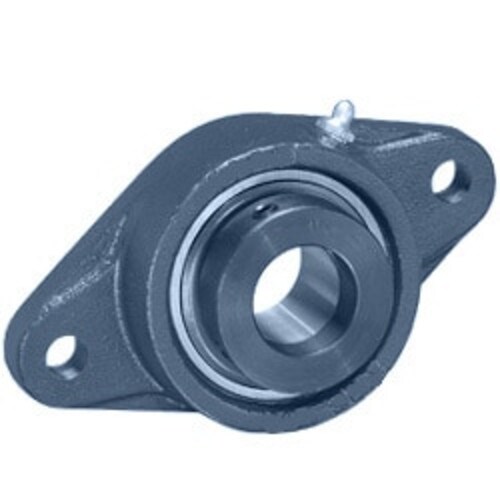

NANFL 205 16 - IPTCI
- Bore / Inner Diameter Inch: 1
- Bore / Inner Diameter MM: 25.4
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 3.891
- Bolt Center to Center MM: 98.83
- Bearing Locking Style: Eccentric Collar
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1 |
|---|---|
| Bore / Inner Diameter MM | 25.4 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 3.891 |
| Bolt Center to Center MM | 98.83 |
| Bearing Locking Style | Eccentric Collar |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Flange Block |
| Expansion / Non-Expansion | Non-expansion |
| Length Across Bore Inch | 1.744 |
| Length Across Bore MM | 44.3 |
