MP-28 - SEALMASTER
- Bore / Inner Diameter Inch: 1.75
- Bore / Inner Diameter MM: 44.45
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 6.1
- Bolt Center to Center MM: 156
- Max Nom Bolt Ctr to Ctr Inch: 6.813
- Max Nom Bolt Ctr to Ctr MM: 173.05
- Bearing Locking Style: Set Screw
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.75 |
|---|---|
| Bore / Inner Diameter MM | 44.45 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 6.1 |
| Bolt Center to Center MM | 156 |
| Max Nom Bolt Ctr to Ctr Inch | 6.813 |
| Max Nom Bolt Ctr to Ctr MM | 173.05 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |

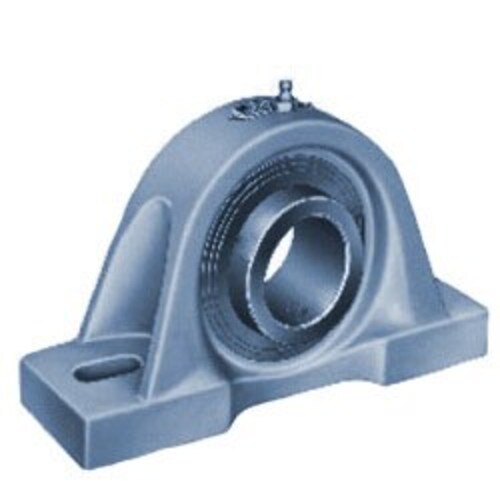

| Housing Style | 2 Bolt Pillow Block |
| Min Nom Bolt Ctr to Ctr Inch | 5.438 |
| Min Nom Bolt Ctr to Ctr MM | 138.125 |
| Base to Center Height Inch | 2.313 |
| Base to Center Height MM | 58.75 |
| Bearing Insert Part Number | 3-112 |
