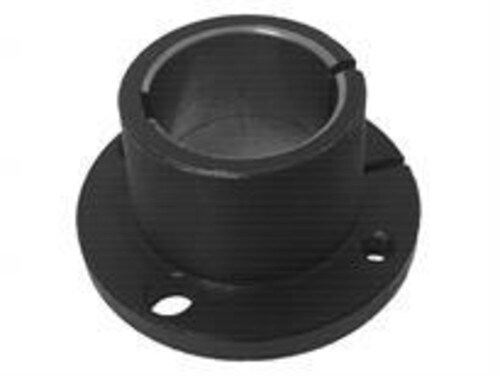

HX1-1/4 - B & B MANUFACTURING
- Bushing Style: H
- Bore Type: Finished Bore
- Bore / Inner Diameter Inch: 1.25
- Minimum Bore Inch: 0.375
SPECIFICATIONS
Bushing Style | H |
---|---|
Bore Type | Finished Bore |
Bore / Inner Diameter Inch | 1.25 |
Minimum Bore Inch | 0.375 |
Maximum Bore Inch | 1.4375 |
Bore / Inner Diameter MM | 31.75 |
Thread Size | 1/4 x 3/4 |
B Dim Inch | 1.625 |
D Dim Inch | 2.5 |
D Large | 1.375 |
D Small | 0.375 |
E Dim Inch | 1 |
F Dim Inch | 0.875 |
H Dim Inch | 2.5 |
I Dim Inch | 1.25 |
T Dim Inch | 1 |
U Dim Inch | 0.25 |
V Dim Inch | 2 |
X Dim Inch | 0.875 |
Y Dim Inch | 0.188 |
Torque Capacity Lb/Inch | 95 |
Material | Steel |
Finish | Black Oxide |
