HM801346-2 - TIMKEN

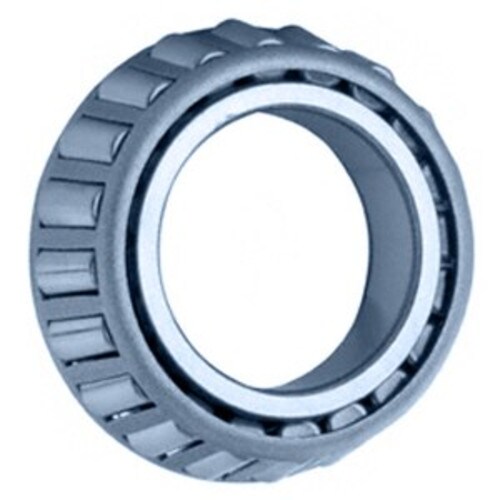

- HM801346-2 - TIMKEN Tapered Roller Bearing Cones
- The most basic and most widely used type of tapered roller bearing, TIMKEN TS bearings consist of two main separable parts: the cone or inner ring and the cup or outer ring. The components are typically mounted in opposing pairs on a shaft.
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1 1/2 |
|---|---|
| Bore / Inner Diameter MM | 38.1 |
| Cone Width Inch | 1.1250 |
| Cone Width MM | 28.575 |
| Model Number | HM801346 |
| Series | Single Cone Imperial Single Cone Imperial |
| In Or Metric | Imperial |
| Dynamic Load Capacity N | 103000 |
| Dynamic Load Capacity lbf | 23100 |
| Static Load Capacity N | 130000 |
| Static Load Capacity lbf | 29300 |
| Rating | Standard |
| Weight (lbs) | 1.142 |
