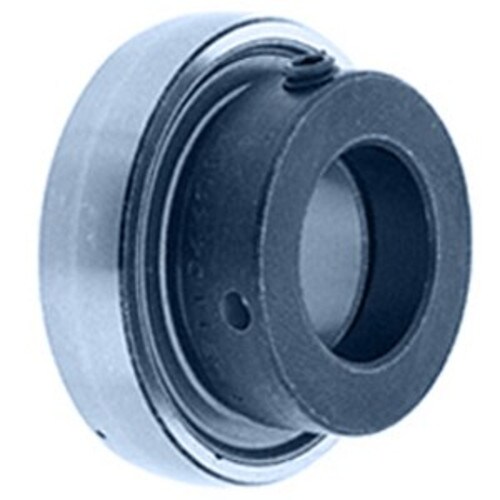

GRA102RRB - FAFNIR
- Bore / Inner Diameter Inch: 1.125
- Bore / Inner Diameter MM: 28.575
- Outside Diameter Inch: 2.441
- Outside Diameter MM: 62.001
- Outer Race Width Inch: 0.709
- Outer Race Width MM: 18.009
- Seal Type: Double Land Riding Rubber Contact
- Snap Ring: No
SPECIFICATIONS
Bore / Inner Diameter Inch | 1.125 |
---|---|
Bore / Inner Diameter MM | 28.575 |
Outside Diameter Inch | 2.441 |
Outside Diameter MM | 62.001 |
Outer Race Width Inch | 0.709 |
Outer Race Width MM | 18.009 |
Seal Type | Double Land Riding Rubber Contact |
Snap Ring | No |
Bearing Locking Style | Eccentric Collar |
Relubricatable | Yes |
Rolling Element | Ball Bearing |
Inner Race Profile | Narrow Inner Ring |
Bearing Profile | Spherical |
