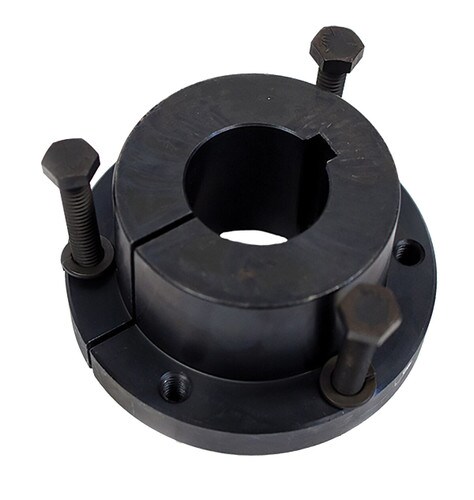

FX3-3/8 - B & B MANUFACTURING
- Bushing Style: F
- Bore Type: Finished Bore
- Bore / Inner Diameter Inch: 3.375
- Minimum Bore Inch: 1.000
SPECIFICATIONS
| Bushing Style | F |
|---|---|
| Bore Type | Finished Bore |
| Bore / Inner Diameter Inch | 3.375 |
| Minimum Bore Inch | 1.000 |
| Maximum Bore Inch | 4.000 |
| Bore / Inner Diameter MM | 85.725 |
| Thread Size | 9/16-12 x 3-5/8 |
| A Dim Inch | 0.813 |
| B Dim Inch | 4.438 |
| D Dim Inch | 6.625 |
| E Dim Inch | 2.813 |
| F Dim Inch | 2.5 |
| I Dim Inch | 3.625 |
| Torque Capacity Lb/Inch | 40000 |
| Bolt Circle Inch | 5.625 |
| Material | Steel |
| Finish | Black Oxide |
