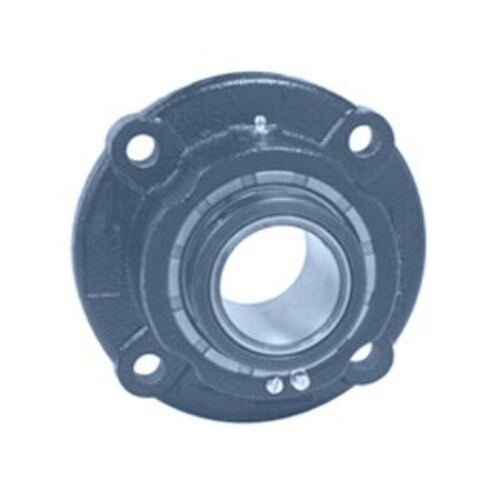

FB22428H - REXNORD
- Bore / Inner Diameter Inch: 1.75
- Bore / Inner Diameter MM: 44.45
- Number of Mounting Holes: 4
- Bolt Center to Center Inch: 3.891
- Bolt Center to Center MM: 98.83
- Nom Bolt Circle Dia Round Inch: 5.5
- Nom Bolt Circle Dia Round MM: 140
- Bearing Locking Style: Concentric Collar
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.75 |
|---|---|
| Bore / Inner Diameter MM | 44.45 |
| Number of Mounting Holes | 4 |
| Bolt Center to Center Inch | 3.891 |
| Bolt Center to Center MM | 98.83 |
| Nom Bolt Circle Dia Round Inch | 5.5 |
| Nom Bolt Circle Dia Round MM | 140 |
| Bearing Locking Style | Concentric Collar |
| Rolling Element | Spherical Roller Bearing |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Round Flange Block |
| Expansion / Non-Expansion | Non-expansion |
| Bearing Insert Part Number | B22428HL |
| Length Across Bore Inch | 3.125 |
| Length Across Bore MM | 79.38 |
| Mounting Bolts Inch | 1/2 |
