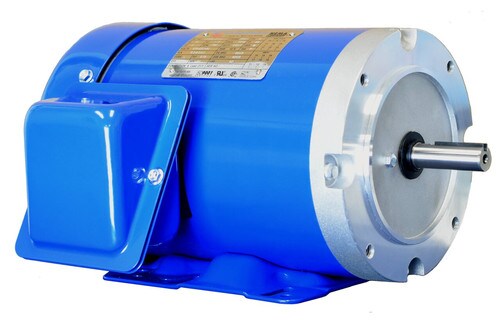

F56C3/4M2A-575V - NORTH AMERICAN
This product has superseded F56C3/4M2D
- HP: 0.75
- Phase: Three
- Full Load RPM: 3510
- Enclosure: TEFC
NEMA DESIGN B
- Maximum 5% Slip
- High To Medium Starting Current
- Normal Locked Rotor Torque
- Normal Breakdown Torque
- Suited For A Broad Variety Of Applications - Like Fans And Pumps
SPECIFICATIONS
Material | Rolled Steel |
---|---|
Full Load RPM | 3600.0 |
RPM | 3600.0 |
Frame | 56C |
Full Load Amps at Rated Voltage | 124.0 |
Frequency Hz | 60.0 |
Voltage | 575 VAC |
Full Load Efficiency Percentage | 90.2 |
Service Factor | 1.15 |
Insulation Class | F |
NEMA Design | B |
NEMA Code | J |
Locked Rotor Amps at Rated Voltage | 6.2 |
Power Factor | 0.84 |
Drive End Bottom Bearing | 6203-2RZC3 |
Opposite Drive End Upper Bearing | 6318 |
Drive End Upper Bearing | NU319 |
Opposite Drive End Bottom Bearing | 6318 |
Inverter Rated or Duty | Inverter Rated |
Phase | Three Phase |
Model Number | F56C3/4M2A-575V |
Weight (lbs) | 20.0 |
HP Range | 0.75 |
HP | 0.75 |
GTIN | 192999058909 |
Enclosure Height Inch | 22.6 |
Enclosure Height MM | 574.04 |
Enclosure Length Inch | 39.5 |
Enclosure Length MM | 1003.3 |
Motor Enclosure Type | Totally Enclosed|TEFC |
RPM Range | 3600.0 |
