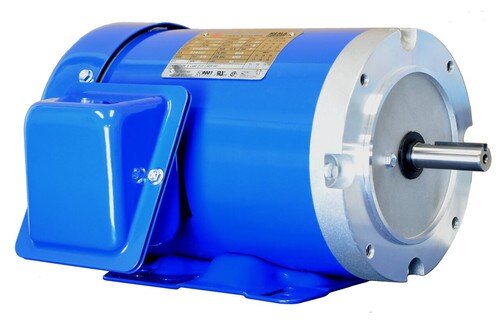

F56C1/2M2A-575V - NORTH AMERICAN
This product has superseded F56C1/2M2D
- HP: 0.5
- Phase: Three
- Full Load RPM: 3540
- Enclosure: TEFC
NEMA DESIGN B
- Maximum 5% Slip
- High To Medium Starting Current
- Normal Locked Rotor Torque
- Normal Breakdown Torque
- Suited For A Broad Variety Of Applications - Like Fans And Pumps
SPECIFICATIONS
Material | Rolled Steel |
---|---|
Full Load RPM | 3600.0 |
RPM | 3600.0 |
Frame | 56C |
Voltage | 575 VAC |
Service Factor | 1.15 |
Insulation Class | F |
NEMA Design | B |
NEMA Code | J |
Locked Rotor Amps at Rated Voltage | 4.5 |
Power Factor | 0.82 |
Drive End Bottom Bearing | 6203-2RZC3 |
Inverter Rated or Duty | Inverter Rated |
Phase | Three Phase |
Model Number | F56C1/2M2A-575V |
Weight (lbs) | 18.0 |
HP Range | 0.5 |
HP | 0.5 |
GTIN | 192999058916 |
Motor Enclosure Type | Totally Enclosed|TEFC |
RPM Range | 3600.0 |
