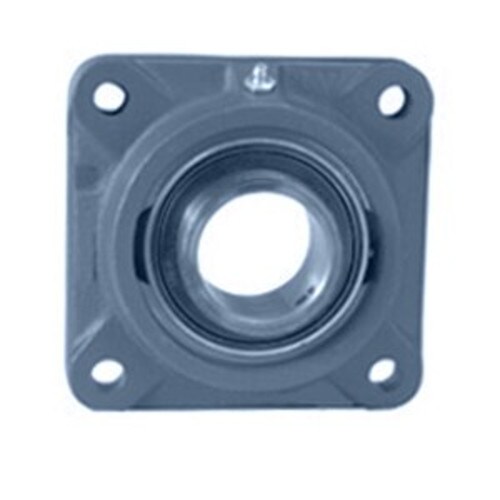

F3U223N - REXNORD

(0)No Reviews yet
$156.04

Details

Details

Bore / Inner Diameter Inch1.438
Bore / Inner Diameter MM36.525
Number of Mounting Holes4
Bolt Center to Center Inch3.625
Bolt Center to Center MM92.08
Nom Bolt Circle Dia Round Inch5.1
Nom Bolt Circle Dia Round MM130
Bearing Locking StyleSet Screw
Rolling ElementBall Bearing
Housing MaterialCast Iron
Housing Style4 Bolt Square Flange Block
Expansion / Non-ExpansionNon-expansion
Bearing Insert Part NumberUG223NL
Length Across Bore Inch1.766
Length Across Bore MM44.85
Mounting Bolts Inch1/2

UNIT PRICE:

$156.04



UNIT PRICE:

SPECIFICATIONS

Bore / Inner Diameter Inch1.438
Bore / Inner Diameter MM36.525
Number of Mounting Holes4
Bolt Center to Center Inch3.625
Bolt Center to Center MM92.08
Nom Bolt Circle Dia Round Inch5.1
Nom Bolt Circle Dia Round MM130
Bearing Locking StyleSet Screw
Rolling ElementBall Bearing
Housing MaterialCast Iron
Housing Style4 Bolt Square Flange Block
Expansion / Non-ExpansionNon-expansion
Bearing Insert Part NumberUG223NL
Length Across Bore Inch1.766
Length Across Bore MM44.85
Mounting Bolts Inch1/2
