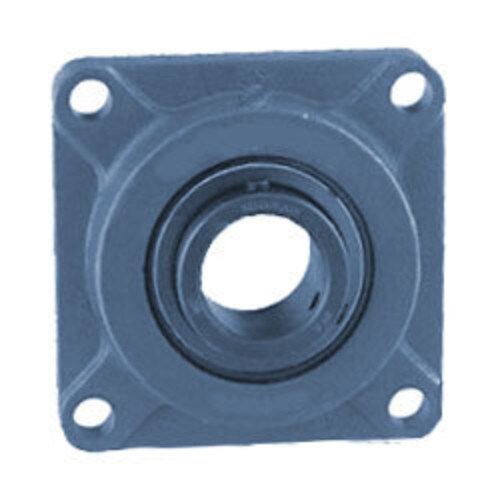

EMSF-27 - SEALMASTER
- Bore / Inner Diameter Inch: 1.688
- Bore / Inner Diameter MM: 42.875
- Number of Mounting Holes: 4
- Bolt Center to Center Inch: 4.375
- Bolt Center to Center MM: 111.13
- Nom Bolt Circle Dia Round Inch: 6.2
- Nom Bolt Circle Dia Round MM: 157
- Bearing Locking Style: Set Screw
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.688 |
|---|---|
| Bore / Inner Diameter MM | 42.875 |
| Number of Mounting Holes | 4 |
| Bolt Center to Center Inch | 4.375 |
| Bolt Center to Center MM | 111.13 |
| Nom Bolt Circle Dia Round Inch | 6.2 |
| Nom Bolt Circle Dia Round MM | 157 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Square Flange Block |
| Expansion / Non-Expansion | Expansion |
| Length Across Bore Inch | 2.031 |
| Length Across Bore MM | 51.6 |
