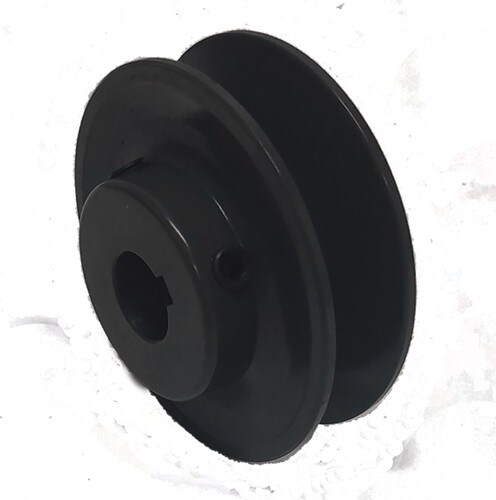

BK25X7/8 - B & B MANUFACTURING
- Type: 1
- Bore Type: Finished Bore
- Outer Diameter Inch: 2.50
- Bore / Inner Diameter Inch: 0.875
SPECIFICATIONS
| Type | 1 |
|---|---|
| Bore Type | Finished Bore |
| Outer Diameter Inch | 2.50 |
| Bore / Inner Diameter Inch | 0.875 |
| Minimum Bore Inch | 0.500 |
| Maximum Bore Inch | 1.000 |
| Face Width Inch | 0.813 |
| Overall Length Inch | 1.219 |
| Hub Diameter Inch | 1.560 |
| Outer Diameter MM | 63.5 |
| Bore / Inner Diameter MM | 22.225 |
| Face Width MM | 20.65 |
| Overall Length MM | 30.956 |
| Hub Diameter MM | 39.624 |
| Thread Size | 1 x 5/16-18 UNC |
| Material | Cast Iron |
