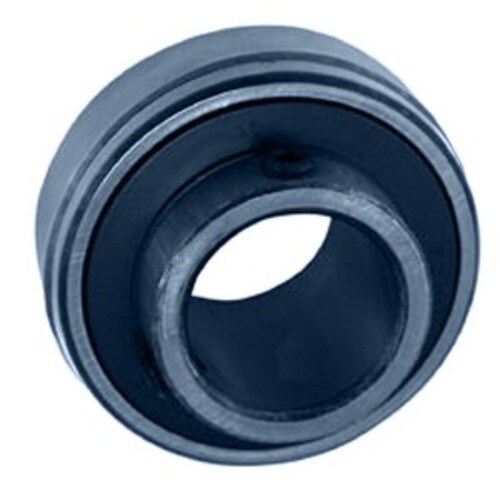

ASS204-012NR - NTN
- Series : Set Screw Type
- Model Number : ASS204-012NR
- Bore / Inner Diameter MM : 19.050
- Bore / Inner Diameter Inch : 0.75
- Outside Diameter MM : 47.000
- Outside Diameter Inch : 1.8504
SPECIFICATIONS
| Series | Set Screw Type |
|---|---|
| Model Number | ASS204-012NR |
| Bore / Inner Diameter MM | 19.050 |
| Bore / Inner Diameter Inch | 0.75 |
| Outside Diameter MM | 47.000 |
| Outside Diameter Inch | 1.8504 |
| Width MM | 14.000 25.000 |
| Width Inch | 0.5512 0.9843 |
| Static Load Capacity N | 6650 |
| Static Load Capacity kN | 6.65 |
| Static Load Capacity lbf | 6650.0 |
| Dynamic Load Capacity N | 12800 |
| Dynamic Load Capacity kN | 12.80 |
| Dynamic Load Capacity lbf | 12800.0 |
| Dimension | d:19.050 mm D:47.000 mm C:14.000 mm B:25.000 mm r:1.000 mm |
