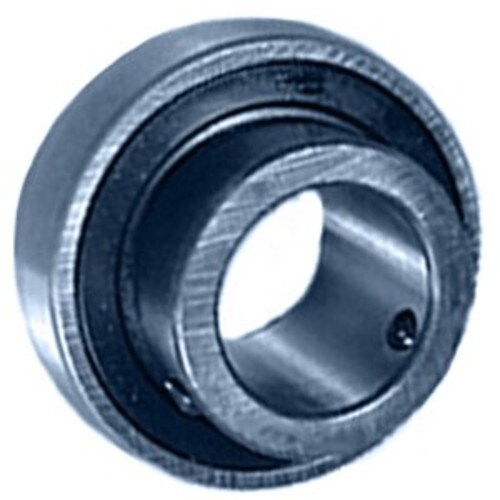

AS204-012D1 - NTN
- Bore / Inner Diameter Inch : 0.75
- Bore / Inner Diameter MM : 19.05
- Outside Diameter Inch : 1.85
- Outside Diameter MM : 46.99
- Width Inch : 0.984
- Width MM : 24.994
SPECIFICATIONS
| Bore / Inner Diameter Inch | 0.75 |
|---|---|
| Bore / Inner Diameter MM | 19.05 |
| Outside Diameter Inch | 1.85 |
| Outside Diameter MM | 46.99 |
| Width Inch | 0.984 |
| Width MM | 24.994 |
| Dynamic Load Capacity N | 12800.0 |
| Static Load Capacity N | 6650.0 |
| In Or Metric | Imperial |
| Inner Race Profile | Narrow Inner Ring |
| Series | AS |
| Model Number | AS204-012D1 |
| Radius Inch | 0.0394 |
| Radius MM | 1.0 |
| Bearing Locking Style | Set Screw |
| Bearing Profile | Spherical |
| Relubricatable | Relubricatable |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contour Riding |
| Weight (lbs) | 0.29 |
