9378-2 - TIMKEN

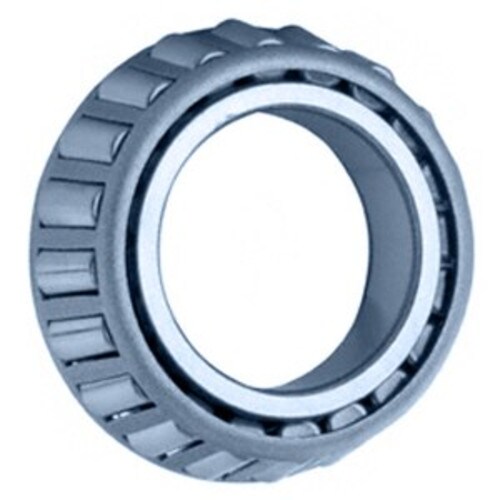

- 9378-2 - TIMKEN Tapered Roller Bearing Cones
- The most basic and most widely used type of tapered roller bearing, TIMKEN TS bearings consist of two main separable parts: the cone or inner ring and the cup or outer ring. The components are typically mounted in opposing pairs on a shaft.
SPECIFICATIONS
| Bore / Inner Diameter Inch | 3 |
|---|---|
| Bore / Inner Diameter MM | 76.2 |
| Cone Width Inch | 2 |
| Cone Width MM | 50.8 |
| Model Number | 9378 |
| Series | 9300 Single Cone Imperial Single Cone Imperial |
| In Or Metric | Imperial |
| Dynamic Load Capacity N | 363000 |
| Dynamic Load Capacity lbf | 81600 |
| Static Load Capacity N | 351000 |
| Static Load Capacity lbf | 78800 |
| Rating | Class 2 |
| Inner Ring Width Inch | 2 |
| Inner Ring Width MM | 50.8 |
| Weight (lbs) | 8.94 |
