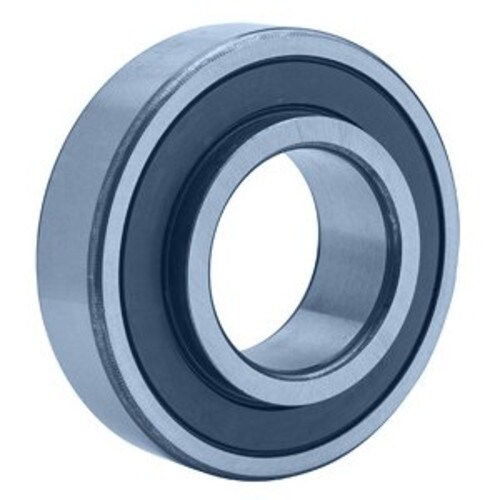

87503 - NTN
- Bore / Inner Diameter Inch: 0.669
- Bore / Inner Diameter MM: 17
- Outside Diameter Inch: 1.575
- Outside Diameter MM: 40
- Enclosure Type: Contact Seal
- Seal Type: 1 Seal-1 Metal Shield
SPECIFICATIONS
| Bore / Inner Diameter Inch | 0.669 |
|---|---|
| Bore / Inner Diameter MM | 17 |
| Outside Diameter Inch | 1.575 |
| Outside Diameter MM | 40 |
| Enclosure Type | Contact Seal |
| Seal Type | 1 Seal-1 Metal Shield |
| Snap Ring | No |
| Rolling Element | Ball Bearing |
| Precision Class | ABEC 1 |
| Cage Material | Steel |
| Internal Fit / Preload | C0 |
| Snap Ring Groove | No |
| Outer Race Width Inch | 0.472 |
| Outer Race Width MM | 12 |
