712-8M-30 - BESTORQ

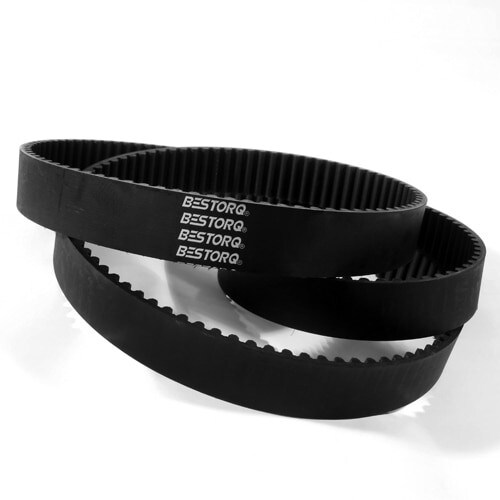

The 712-8M-30 from Bestorq is a black-rubber, trapezoidal-tooth timing belt. The belt has 60 teeth and exceeds USA Rubber Manufacturers Association rating guidelines. Throughout the belt, high-temperature chloroprene polymer is utilized. All materials throughout the belt have been tested for performance resistance to wear and for smooth running.
The Bestorq 712-8M-30 is offered as an alternative to chain drives and is meant to run in a cleaner fashion, operate lube-free at a quieter operation volume, and be provided at a lower cost. It can be used for a wide variety of projects whether for home or industrial use. Some examples include treadmills, water pumps, vacuums, copiers, and other equipment. It is designed to be able to match in a set with any other 712-8M-30 belts offered by Bestorq.
SPECIFICATIONS
Belt Width Inch | 1.18 |
---|---|
Belt Width MM | 30.00 |
Timing Belt Pitch Inch | 0.31 |
Timing Belt Pitch MM | 8 |
Outside Belt Diameter Inch | 28.03 |
Outside Belt Diameter MM | 712.00 |
Number of Teeth | 89 |
Belt Thickness / Sidewall Depth Inch | 0.22 |
Belt Thickness / Sidewall Depth MM | 5.70 |
GTIN | 840593163207 |
Model Number | 712-8M-30 |
