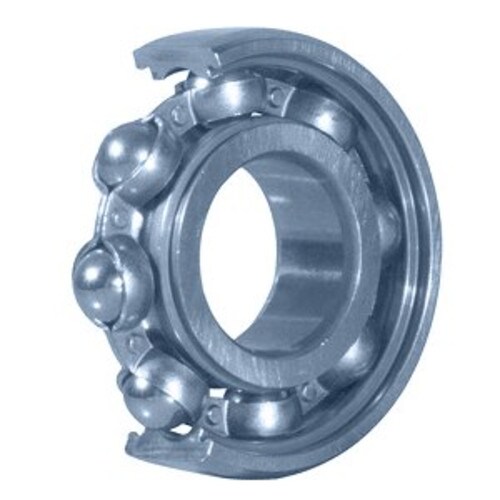

6311 - FAG BEARING
- 6311 Ball Bearing
- Bore / Inner Diameter Inch:2.165
- Bore / Inner Diameter MM:55
- Outside Diameter Inch:4.724
- Outside Diameter MM:120
- Width Inch:1.142
- Width MM:29
- Series:
- Replacing:
SPECIFICATIONS
| Bore / Inner Diameter Inch | 2.165 |
|---|---|
| Bore / Inner Diameter MM | 55 |
| Outside Diameter Inch | 4.724 |
| Outside Diameter MM | 120 |
| Width Inch | 1.142 |
| Width MM | 29 |
| Max Speed RPM | 8500 |
| Reference Speed RPM | 7100 |
| Minimum Temperature C | -30 |
| Maximum Temperature C | 150 |
| Dynamic Load Capacity N | 83000 |
| Dynamic Load Capacity N Radial | 83000 |
| Static Load Capacity N | 47500 |
| Static Load Capacity N Radial | 47500 |
