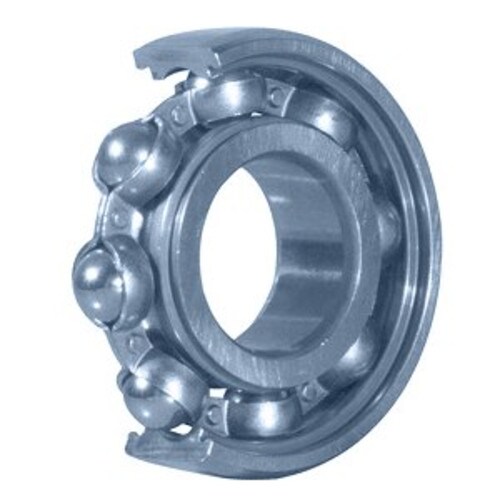

6210 - FAG BEARING
- 6210 Ball Bearing
- Bore / Inner Diameter Inch:1.969
- Bore / Inner Diameter MM:50
- Outside Diameter Inch:3.543
- Outside Diameter MM:90
- Width Inch:0.787
- Width MM:20
- Series:
- Replacing:
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.969 |
|---|---|
| Bore / Inner Diameter MM | 50 |
| Outside Diameter Inch | 3.543 |
| Outside Diameter MM | 90 |
| Width Inch | 0.787 |
| Width MM | 20 |
| Max Speed RPM | 10500 |
| Reference Speed RPM | 8200 |
| Minimum Temperature C | -30 |
| Maximum Temperature C | 120 |
| Dynamic Load Capacity N | 39000 |
| Dynamic Load Capacity N Radial | 39000 |
| Static Load Capacity N | 24200 |
| Static Load Capacity N Radial | 24200 |
