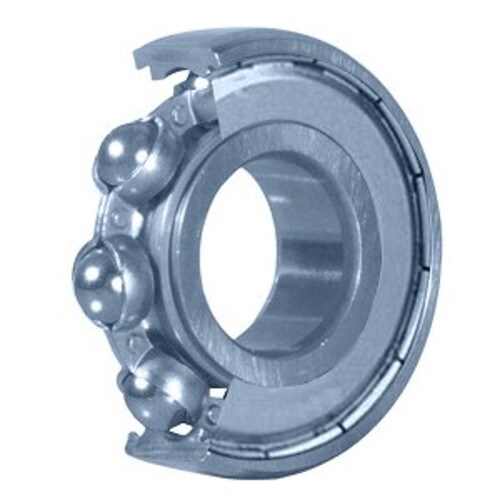

6209Z - NSK
- Bore / Inner Diameter Inch: 1.772
- Bore / Inner Diameter MM: 45
- Outside Diameter Inch: 3.346
- Outside Diameter MM: 85
- Seal Type: 1 Metal Shield
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.772 |
|---|---|
| Bore / Inner Diameter MM | 45 |
| Outside Diameter Inch | 3.346 |
| Outside Diameter MM | 85 |
| Seal Type | 1 Metal Shield |
| Snap Ring | No |
| Rolling Element | Ball Bearing |
| Precision Class | ABEC 1 |
| Cage Material | Steel |
| Internal Fit / Preload | C0 |
| Snap Ring Groove | No |
